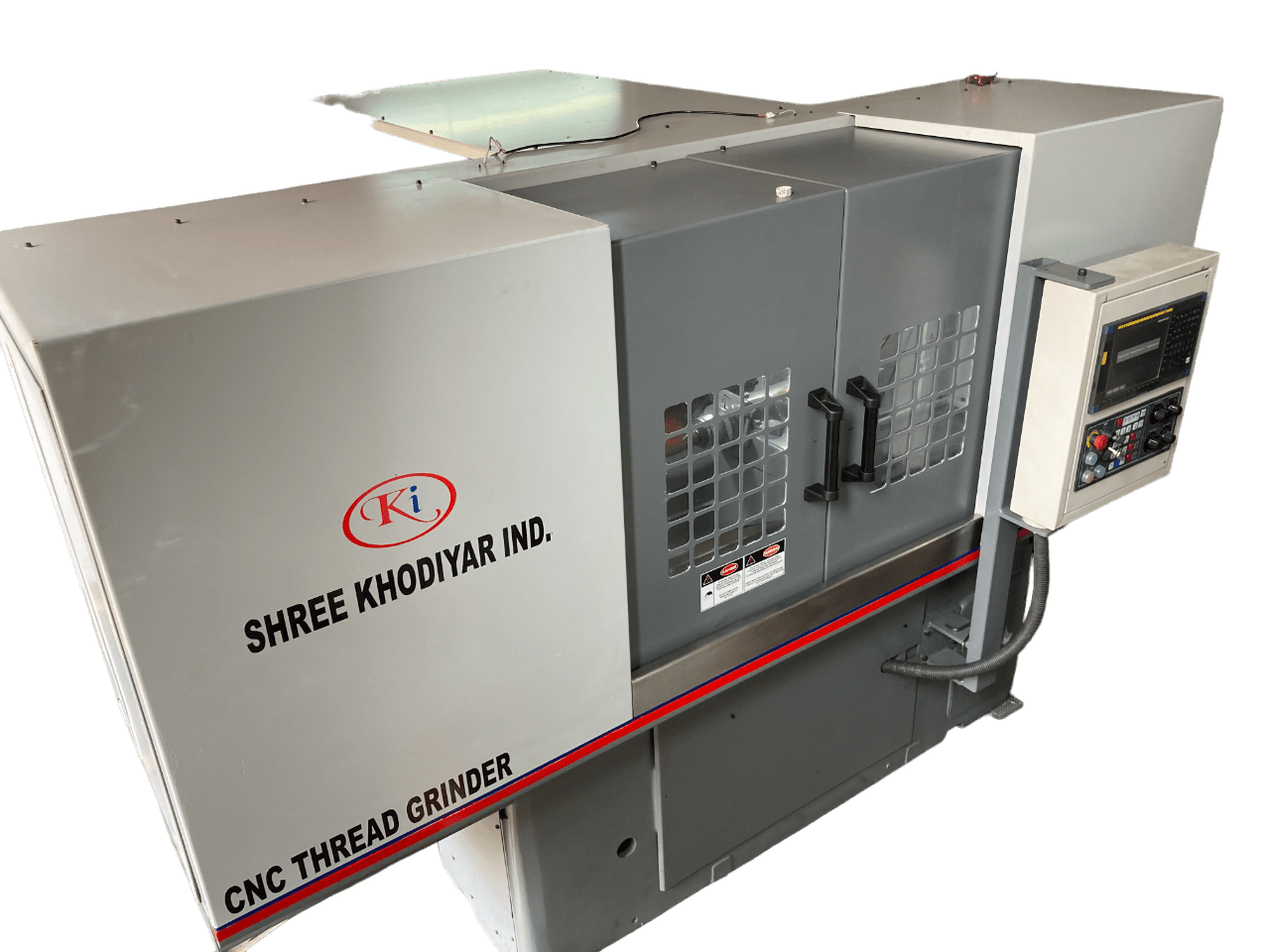

Thread Grinding Machine

We Shree Khodiyar Industries manufacturing Thread Grinding machine. This machine designed for precision Thread Grinding application with higher productivity. this thread grinding machine are ideally suitable for all type of threads with different Hlix angle. this product are Higher pitch accuracy. it is also suitable for threads Left to Right or Right to Left.

SALIENT FEATURES :

  • Four-axes CNC Worm & Thread Grinding Machine designed for efficient and high accuracy grinding of single or multi-start worms and threads.

  • Short changeover and short idle times.

  • Interpolation between C-axis and Z-axis for the generation of worm and threads eliminates the need for complex kinematics thereby reducing maintenence.

  • Micro taper correction dacility for tailstock.

  • Centralised Lubrication for guideways and ball nuts.

  • Auto wheel dressing compensation.

  • Easy For Maintenence.

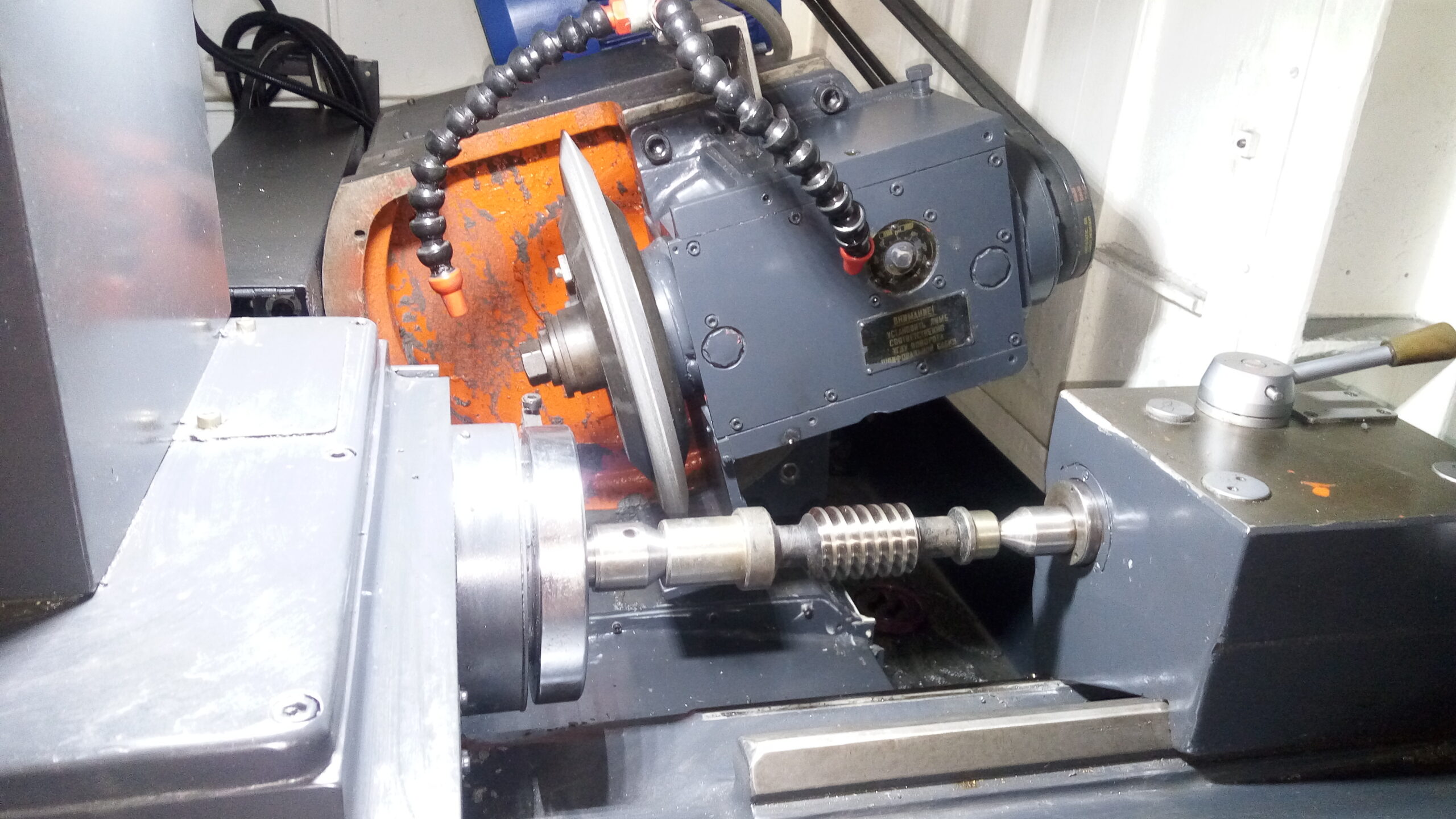

IMG_20170416_103505 (2)
IMG_20170416_103838

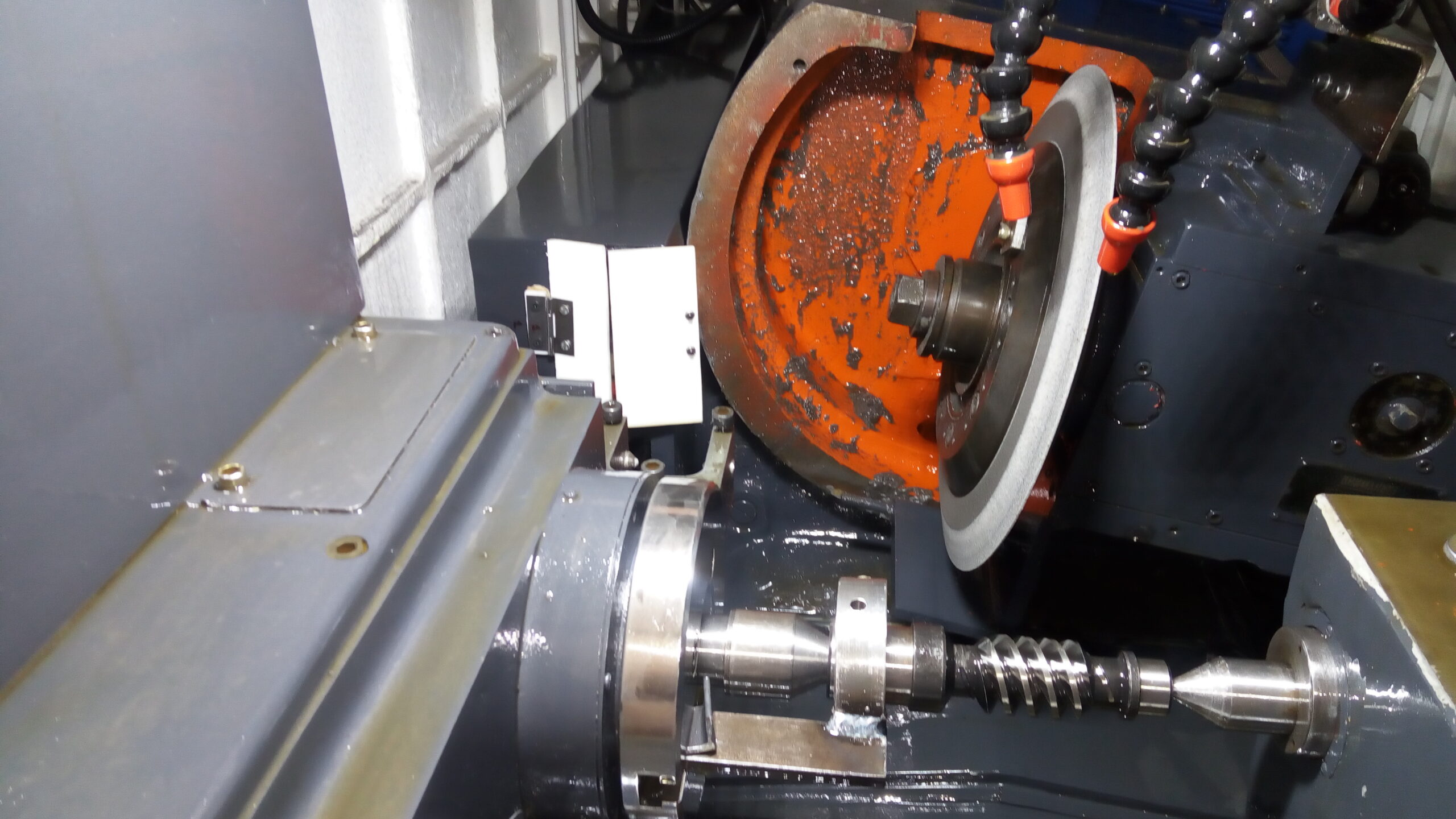

IMG_20170416_160237 (2)

CNC Thread Grinding Machine

Specification
DESCRIPTION UNIT SIZE
Specification MM 400
Max. distance between centers. MM 600
Max. workpiece dia. MM 100
Max. helix angle Deg. 30
Control system - SIMENES
